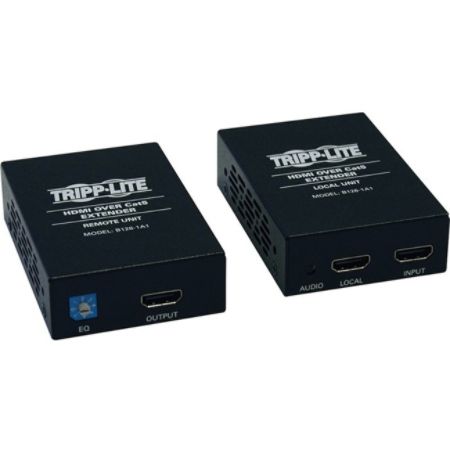

Tripp Lite B126-1A1 HDMI over Cat5 Extender kit Item # 580579
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
580579
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
The B126-1A1 transmits a 1080p (60Hz) signal to a monitor up to 150 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) The transmitter unit features an HDMI port for the connection of a local monitor. The receiver unit features a built-in Equalization control for adjustment of the video image. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM).Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the receiver unit to a display using a Tripp Lite P568-Series HDMI cable (not included). Finally, connected the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable.A 1080p (60Hz) signal can be transmitted up to 150 ft. A 1080i (60Hz) signal can be transmitted up to 200 ft. A 3D signal can be transmitted up to 125 ft. Further extend the signal range or add more displays by using a Tripp Lite B126-110 Remote Repeater unit: Add up to three repeaters, with a receiver unit located at the end of the installation, for a total of 4 displays. A 1080p (60Hz) signal can be extended up to 125 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 1080p (60Hz) signal can be extended up to 500 ft. A 1080i (60Hz) signal can be extended up to 175 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 1080i (60Hz) signal can be extended up to 700 ft. A 3D signal can be extended up to 100 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 3D signal can be extended up to 400 ft.
Product Details
| Item # | 580579 |
| OfficeMax # | 23365902 |
| Manufacturer # | DP8830 |
| Number of Network (RJ-45) Ports | 2 |
| Certifications & Standards | HDCP; TAA |
| Connectivity Technology | Wired |
| package contents | B126-1A1 Video Extender/Console; Screwdriver for adjustment of Equalization; 2 x Mounting Hardware; 2 x External Power Supply; Owner's Manual |
| Product Name | B126-1A1 Video Extender/Console |
| Twisted Pair Cable Standard | Category 6 |
| manufacturer | Tripp Lite |
| HDMI Out | Yes |
| Maximum Operating Distance | 150 ft |
| brand name | Tripp Lite |
| Network (RJ-45) | Yes |
| Number of HDMI Inputs | 1 |
| Media Type Supported | Twisted Pair |
| Number of Output Devices Supported | 2 |
| Number of Input Devices Supported | 2 |
| form factor | Rack-mountable; Wall Mountable |
| Number of HDMI Outputs | 2 |
| HDMI In | Yes |
| color | black |
| warranty length | 1-year limited |
| model name | B126-1A1 |
| Show More ▾ |
